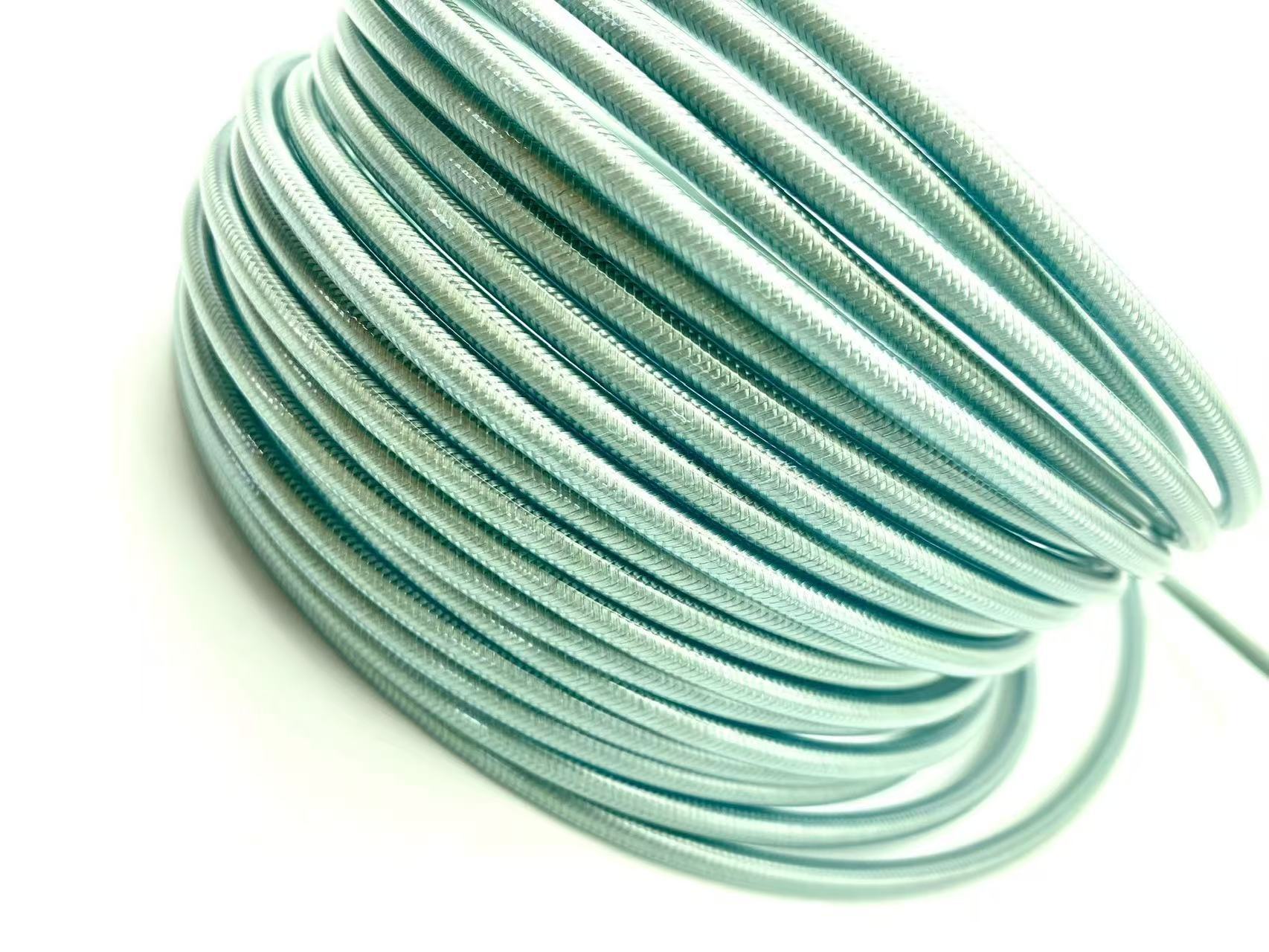

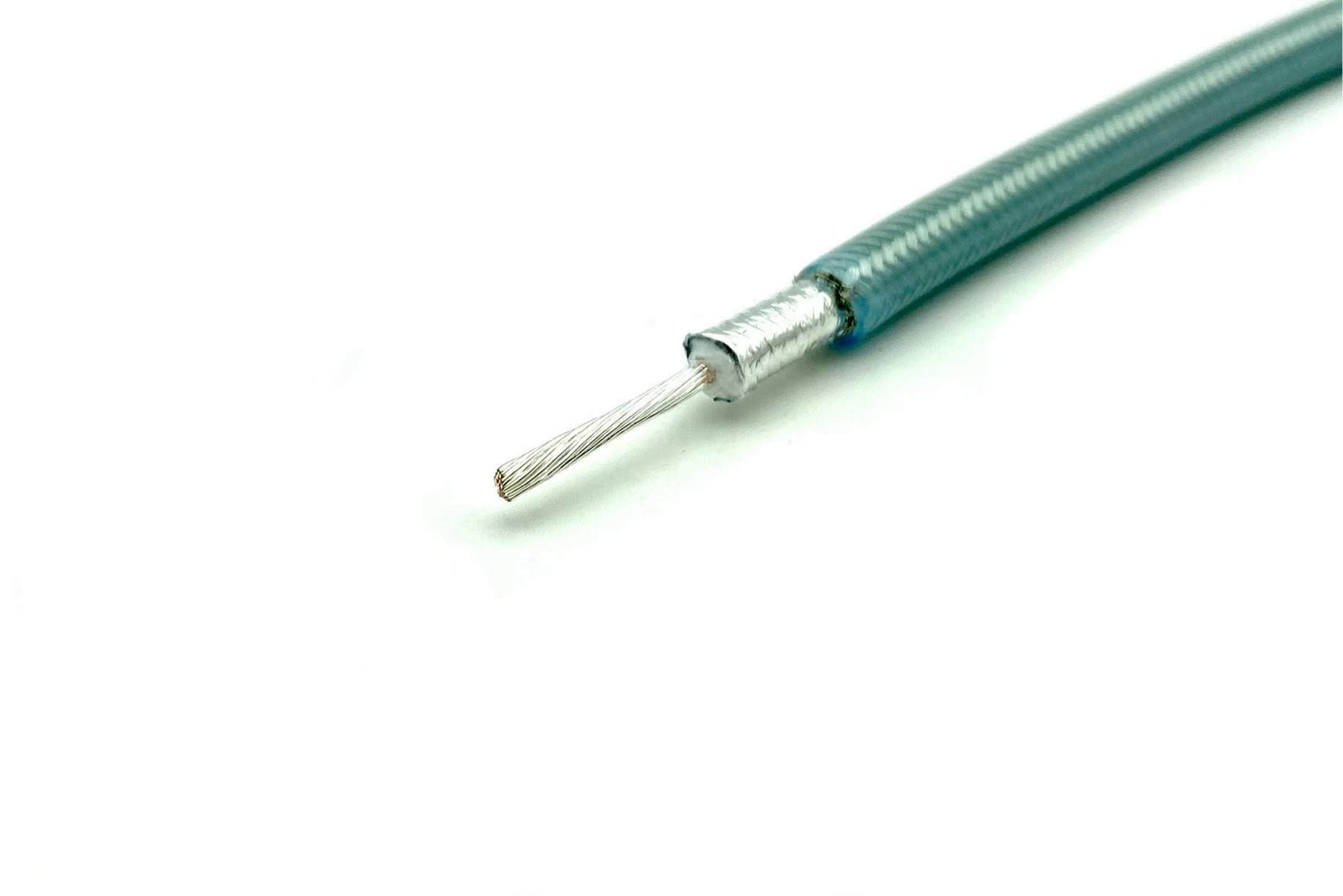

LOW LOSS Coaxial Wire
Use for wireless communications，broadcasting and radio frequency signals，etc.
keyword：
category：
Coaxial Cable
High Temperature Coaxial Cable
Product Description
| Electrical Property | |
Characteristic Impedance | 50±2 Ω |
| Velocity of Propagation | 77% |
| Min. Bend Radius | 21mm |
| Suitable for frequencies | 18GHz |
| VSWR | ≤1.20 to 18GHz |
| Operating temperature range | 40~85℃ |
| Attenuation（20℃） | |
MHz | Attenuation≯(dB/m) |
400 | 0.25 |
1000 | 0.40 |
2450 | 0.65 |
| 5000 | 1.0 |
| 10000 | 1.80 |
| 28000 | 2.70 |
