Teflon Wire&Cable (Specificatioin Sheet Of Single Conductor)

Use for temperature sensors，aviation，electric machinery，steel mils and power plants，etc.

keyword：

Specificatioin Sheet Of Single Conductor

category：

Specification Sheet Of Single Conductor

Product consultation：

+86-138-1769-1639

Product inquiry

Related products

Product Description

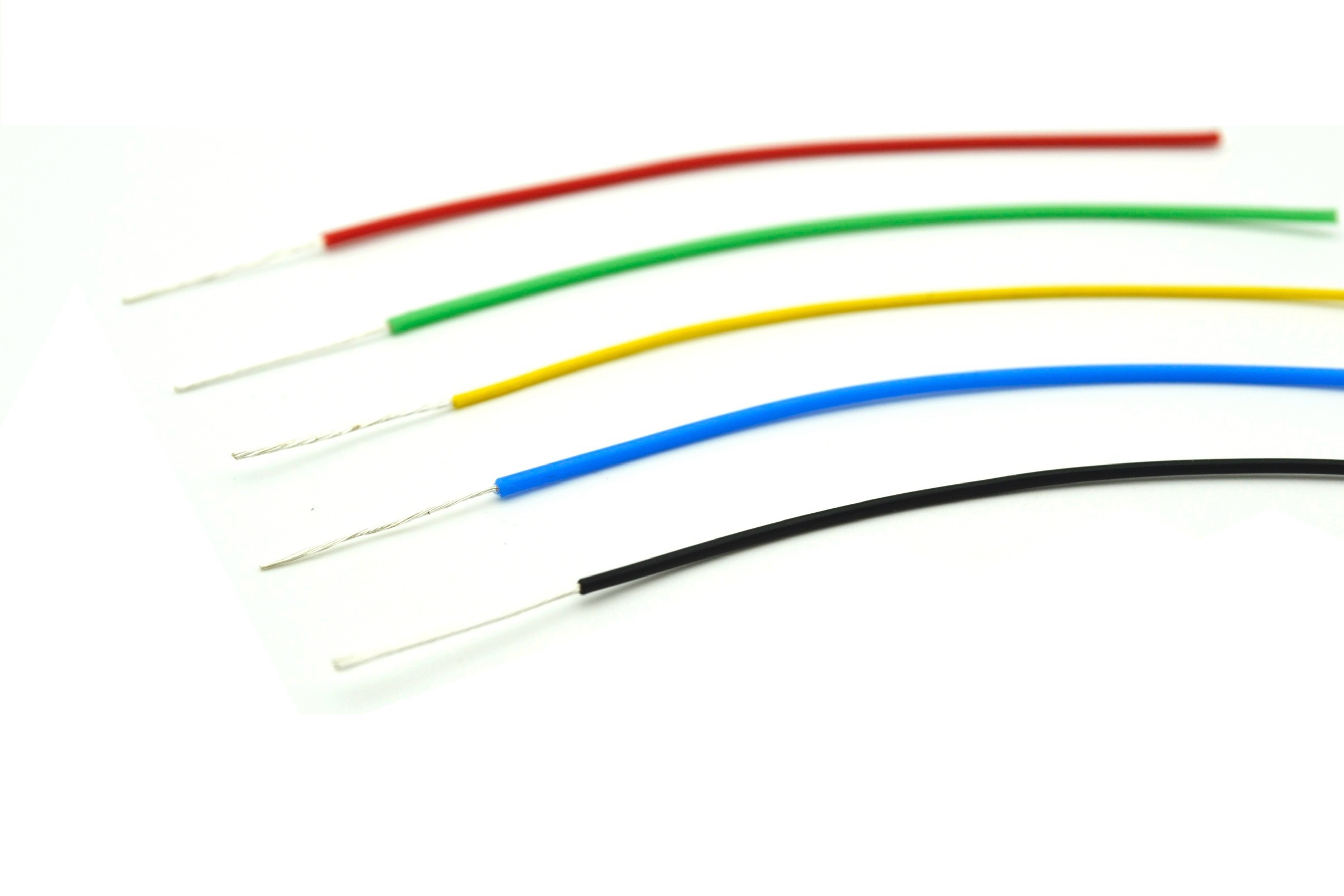

Teflon Wire&Cable

Product Features:

Excellent corrosion resistance, resistant to oil, strong acids, strong bases, strong oxidizing agents, resistant to microorganisms, and does not allow any fungal formation.
Excellent electrical insulation performance, with low dielectric properties that are nearly frequency-independent, can withstand high voltage, low high-frequency loss, moisture resistant, with a water absorption rate of <0.01%, a minimum water vapor permeability of approximately 0.18mgr/cm2 (within 24 hours), and high insulation resistance.
Non-flammable and self-extinguishing.
Free of harmful substances and compliant with ROHS standards.

Application Range:

In the electronics industry, suitable for temperature compensation wires, low-temperature resistant wires, high-temperature heating wires, aging-resistant wires, and flame-retardant wires.
In home appliances, applicable for wiring in air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electronic thermoses, electric heaters, electric ovens, electric clay pots, lamps, and other internal wiring.
For installations in control cabinets affected by high heat, as well as in brick factories, heaters, kitchen equipment, measuring equipment, and the chemical industry.
Transmission lines for electronic devices used under high temperature and high frequency, connecting wires inside electronic computers, aerospace wires, and other special-purpose installation wires, oil field logging cables, submerged motor winding wires, micro motor lead wires, etc.

Gauge	Inches	Diameter		Cross sect.Area		DCR@20℃		Weight
AWG	Inches	mils	mm	Circ.mils	Sq.mm	Ohms./M	Ohms. /KM	Ibs./M	Kg/km
40	0.0031	3.1	0.079	9.6	0.0049	1080	3540	0.0291	0.0433
39	0.0035	3.5	0.089	12.3	0.0062	847	2780	0.0371	0.0552
38	0.004	4	0.102	16	0.0081	648	2130	0.0484	0.72
37	0.0045	4.5	0.114	20.3	0.0103	512	1680	0.0613	0.0912
36	0.005	5	0.127	25	0.0127	415	1360	0.0757	0.113
35	0.0056	5.6	0.142	31.4	0.0159	331	1080	0.0949	0.141
34	0.0063	6.3	0.16	39.7	0.0201	261	857	0.12	0.179
33	0.0071	7.1	0.18	50.4	0.0255	206	657	0.153	0.228
32	0.008	8	0.203	64	0.0324	162	532	0.194	0.289
31	0.0089	8.9	0.226	79.2	0.0401	131	430	0.24	0.357
30	0.01	10	0.254	100	0.0507	104	340	0.303	0.451
29	0.0113	11.3	0.287	128	0.0649	81.2	266	0.387	0.576
28	0.0126	12.6	0.32	159	0.0806	65.3	214	0.481	0.716
27	0.0142	14.2	0.361	202	0.102	51.4	169	0.61	0.908
26	0.0159	15.9	0.404	253	0.128	41	135	0.765	1.14
25	0.0179	17.9	0.455	320	0.162	32.4	106	0.97	1.44
24	0.0201	20.1	0.511	404	0.205	25.7	84.2	1.22	1.82
23	0.0266	22.6	0.574	511	0.259	20.3	66.6	1.55	2.31
22	0.0253	25.3	0.643	640	0.324	16.2	53.2	1.94	2.89
21	0.0285	28.5	0.724	812	0.411	12.8	41.9	2.46	3.66
20	0.032	32	0.813	1020	0.519	10.1	33.2	3.1	4.61
19	0.0359	35.9	0.912	1290	0.635	8.05	26.4	3.9	5.8
18	0.0403	40.3	1.02	1620	0.823	6.39	21	4.92	7.32
17	0.0453	45.3	1.15	2050	1.04	5.05	16.6	6.21	9.24
16	0.0508	50.8	1.29	2580	1.31	4.02	13.2	7.81	11.6
15	0.0571	57.1	1.45	3260	1.65	3.18	10.4	9.87	14.7
14	0.0641	64.1	1.63	4110	2.08	2.52	8.28	12.4	18.5
13	0.072	72	1.83	5180	2.63	2	6.56	15.7	23.4
12	0.0808	80.8	2.05	6530	3.31	1.59	5.21	19.8	29.5
11	0.0907	90.7	2.3	8230	4.17	1.26	4.14	24.9	37.1
10	0.1019	101.9	2.588	10380	5.26	0.9988	3.277	31.4	46.8
9	0.1144	114.4	2.906	13090	6.63	0.7925	2.6	39.6	59
8	0.1285	128.5	3.265	16510	8.37	0.6281	2.061	50	74.4
7	0.1443	144.3	3.655	20820	10.55	0.4981	1.634	63	93.8
6	0.162	162	4.115	26240	13.3	0.3952	1.296	79.4	118
5	0.1819	181.9	4.62	33090	16.77	0.3134	1.028	100	149
4	0.2043	204.3	5.189	41740	21.15	0.2485	0.8152	126	188
3	0.2294	229.4	5.827	52620	26.67	0.1917	0.6466	159	237
2	0.2576	257.6	6.543	66360	33.62	0.1563	0.5128	201	299
1	0.2893	289.3	7.348	83690	42.41	0.1239	0.4065	253	377
1/0	0.3249	324.9	8.252	105600	53.49	0.09825	0.3223	319	476
2/0	0.3648	364.8	9.266	133100	67.43	0.07793	0.2557	403	599
3/0	0.4096	409.6	10.4	167800	85.01	0.06182	0.2028	508	756
4/0	0.46	460	11.68	211600	107.22	0.04901	0.1608	641	953
